PVC Braided Hose

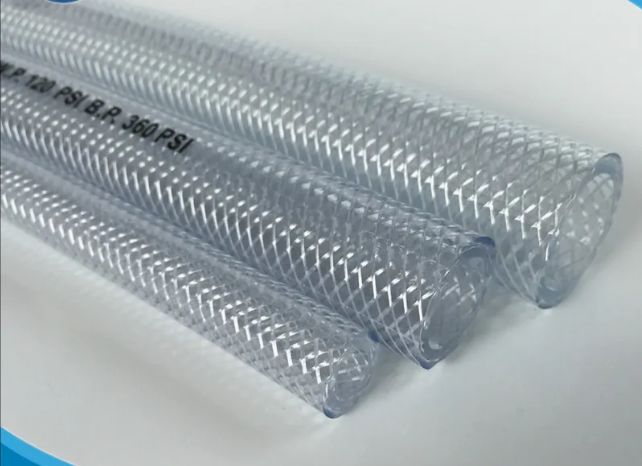

AMOLON AIRMAX™ – Air & Pneumatic Hose
AMOLON PVC Fiber Air & Pneumatic Hose is a high-pressure, heavy-duty utility hose engineered specifically for compressed air delivery, pneumatic equipment, and service station air pumps. Reinforced with double-braided high-tenacity polyester yarn, it maintains high safety margins with a 3:1 burst-to-working pressure ratio.
TECHNICAL SPECIFICATIONS
PVC Fiber Air & Pneumatic Hose
| SIZE ID (MM) | SIZE INCH | WORKING PRESSURE (KG/CM2) | BURSTING PRESSURE (KG/CM2) | STANDARD LENGTHS (METER) |
|---|---|---|---|---|
| 6 | 1/4 | 25 | 75 | 50 / 60 / 100 |
| 8 | 5/16 | 25 | 75 | 50 / 60 / 100 |
| 10 | 3/8 | 25 | 75 | 50 / 60 / 100 |
| 12 | 1/2 | 20 | 60 | 50 / 60 / 100 |
| 20 | 3/4 | 20 | 60 | 50 / 60 / 100 |
| 25 | 1 | 15 | 45 | 50 / 100 |
Subject to variations in technical specifications according to internal factory tolerances.
Key Features & Benefits
Excellent flexibility
Durable construction
Weather and abrasion resistant
Smooth flow performance
Long operational life
Industrial and agricultural applications
Recommended Applications
Agriculture irrigation
Industrial water transfer
Construction applications
General fluid handling
Water suction and discharge
Ordering Info
Important Notice
- Please ask for minimum quantity and pricing.
- Custom size/length requests are subject to agreement.
- Available also in other colors.
