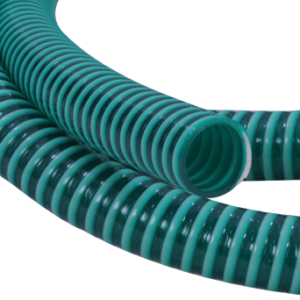

Home / PVC Suction Hose Light Duty
Structure
- Rigid PVC WHITE Spiral
- Smooth Inside – Green
- Transparent PVC Wall
Description
Specification:
| PVC SUCTION HOSE LIGHT DUTY |
| SIZE IN INCH |
SIZE IN MM |
WALL THICKNESS MM |
WORKING PRESSURE KGS/CM2 |
BURSTING PRESSURE KGS/CM2 |
LENGTH METERS |
REGULAR STANDARD WEIGHT |
| 3/4″* |
20 |
2.00 |
8.00 |
18.00 |
30.000 |
5.250 |
| 1″* |
25 |
2.50 |
7.50 |
16.00 |
30.000 |
7.100 |
| 1-1/4″** |
32 |
2.50 |
6.50 |
15.00 |
30.000 |
9.100 |
| 1-1/2″** |
40 |
2.50 |
5.50 |
14.50 |
30.000 |
13.000 |
| 1-3/4″** |
45 |
3.00 |
5.50 |
14.00 |
30.000 |
17.000 |
| 2″** |
50 |
3.00 |
5.00 |
14.00 |
30.000 |
19.500 |
| 2-1/4″** |
60 |
3.00 |
5.00 |
13.50 |
30.000 |
25.500 |
| 2-1/2″** |
65 |
3.50 |
5.00 |
13.00 |
30.000 |
29.000 |
| 3″*** |
75 |
3.50 |
4.50 |
13.00 |
30.000 |
38 TO 39 |
| 3-1/2″*** |
90 |
4.00 |
4.00 |
12.00 |
30.000 |
48 TO 50 |
| 4″*** |
100 |
5.00 |
3.50 |
10.00 |
30.000 |
68 TO 70 |
| 4-1/2″*** |
110 |
5.50 |
3.50 |
10.00 |
30.000 |
77 TO 80 |
