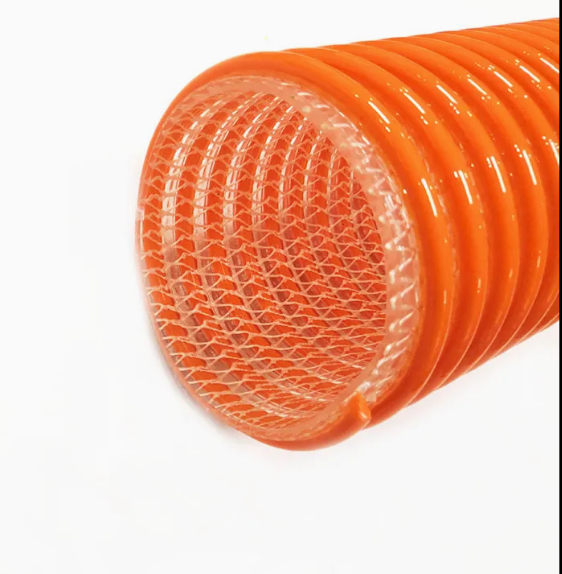

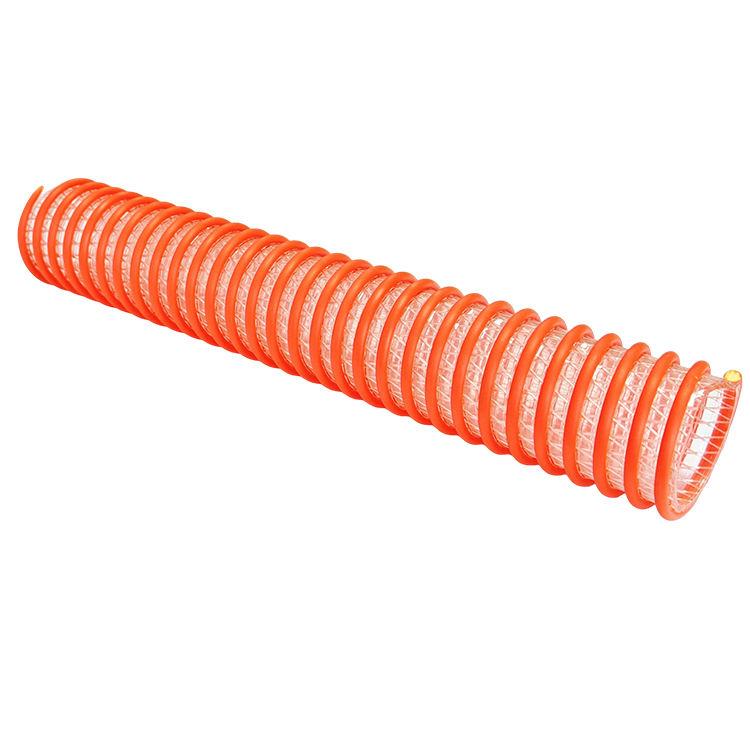

AMOLON SUPERFLEX™ – Fiber Reinforced Suction Hose
AMLON Fiber Reinforced PVC Suction Hose is a high-strength hose designed for applications requiring improved pressure resistance and durability. This hose combines rigid PVC spiral reinforcement with additional synthetic fiber reinforcement to provide enhanced structural strength and superior performance under demanding conditions. Manufactured using premium-grade flexible PVC, it ensures excellent flexibility, smooth flow characteristics, and long service life. It is ideal for agriculture, construction, industrial water transfer, and heavy-duty suction operations.
Technical Specifications
Fiber Reinforced Suction Hose
| SIZE | DIAMETER | BENDING RADIUS (MM) | PRESSURE WORKING (KG/CM) | (AT 30C) BURSTING | STANDARD LENGTHS (METER) | |
|---|---|---|---|---|---|---|
| ID (MM) | INCH | ID (MM) | ||||
| 50 | 2 | 51 | 250 | 6 | 18 | 30 |
| 65 | 2-1/2 | 64 | 300 | 5 | 15 | 30 |
| 75 | 3 | 76 | 300 | 4 | 12 | 30 |
| 102 | 4 | 102 | 400 | 4 | 12 | 30 |
| 120 | 5 | 127 | 600 | 4 | 12 | 30 |
| 150 | 6 | 152 | 750 | 3 | 9 | 10 / 15 |
*Subject to variations in technical specifications according to internal factory tolerances.
Key Features & Benefits
Excellent flexibility
Durable construction
Weather and abrasion resistant
Smooth flow performance
Long operational life
Industrial and agricultural applications
Recommended Applications
Agriculture irrigation
Industrial water transfer
Construction applications
General fluid handling
Water suction and discharge
Ordering Info
Important Notice
- Please ask for minimum quantity and pricing.
- Custom size/length requests are subject to agreement.
- Available also in other colors.
