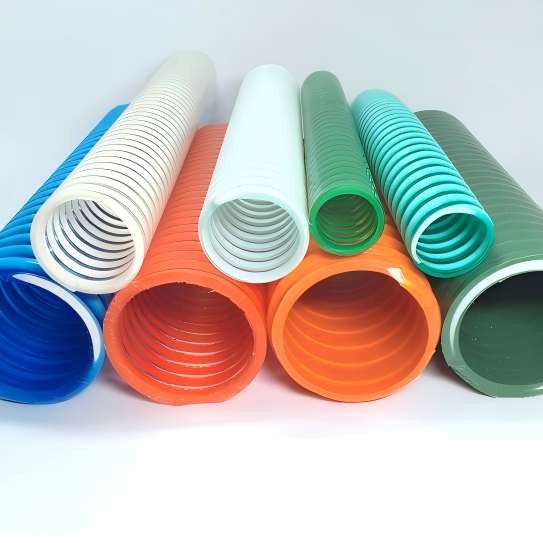

AMOLON TITAN™ – Heavy Duty Suction Hose
Tirupati Polyflex Heavy Duty PVC Suction Hose is specially designed for high-pressure suction and delivery applications requiring superior strength, durability, and vacuum resistance. It is ideal for agriculture, construction, mining, industrial, and heavy water transfer applications.
Technical Specifications
Heavy Duty Suction Hose
| SIZE | BENDING RADIUS (MM) | PRESSURE WORKING (KG/CM) | (AT 30C) BURSTING | STANDARD LENGTHS (METER) | |
|---|---|---|---|---|---|
| ID (MM) | INCH | ||||
| 20 | 3-4 | 45 | 11 | 33 | 30 / 50 |
| 25 | 1 | 55 | 11 | 33 | 30 / 50 |
| 32 | 1-1/4 | 75 | 11 | 33 | 30 / 50 |
| 40 | 1-1/2 | 95 | 10 | 30 | 30 / 50 |
| 45 | 1-3/4 | 375 | 7 | 21 | 30 / 50 |
| 50 | 2 | 122 | 9 | 27 | 30 / 50 |
| 65 | 2-1/2 | 160 | 9 | 27 | 30 / 50 |
| 75 | 3 | 272 | 8 | 24 | 30 / 50 |
| 89 | 3-1/2 | 375 | 7 | 21 | 30 / 50 |
| 100 | 4 | 290 | 8 | 24 | 30 / 50 |
| 115 | 4-1/2 | 375 | 7 | 21 | 30 |
| 127 | 5 | 375 | 7 | 21 | 6 / 12 / 15 / 30 |
| 150 | 6 | 375 | 7 | 21 | 6 / 12 / 15 / 30 |
| 200 | 8 | 600 | 7 | 21 | 6 / 12 / 15 |
| 125 | 10 | 600 | 7 | 21 | 6 / 10 / 12 |
| 300 | 12 | 600 | 7 | 21 | 6 / 10 |
Subject to variations in technical specifications according to internal factory tolerances.
Key Features & Benefits
Excellent flexibility
Durable construction
Weather and abrasion resistant
Smooth flow performance
Long operational life
Industrial and agricultural applications
Recommended Applications
Agriculture irrigation
Industrial water transfer
Construction applications
General fluid handling
Water suction and discharge
Ordering Info
Important Notice
- Please ask for minimum quantity and pricing.
- Custom size/length requests are subject to agreement.
- Available also in other colors.
* = ±0.5mm, ** = ±1.0mm, *** = ±1.5mm
Note: Maintains flexibility in extreme conditions.
