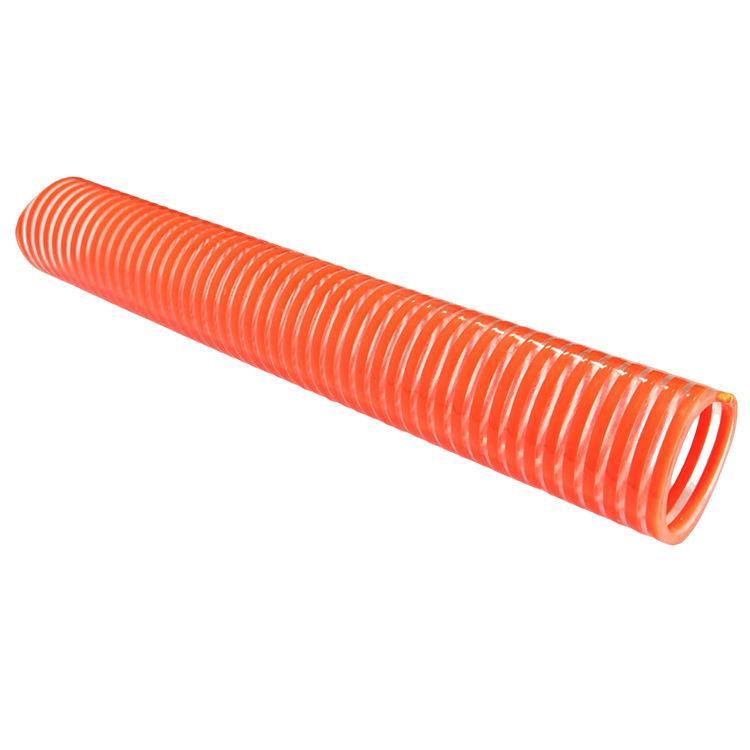

AMOLON ORANGEX™ – Orange Heavy Duty Suction Hose
AMOLON Heavy Duty Orange PVC Suction Hose is a high-strength, premium-quality hose specially designed for demanding suction and delivery applications. Manufactured using superior-grade flexible PVC reinforced with a thick rigid PVC spiral, this hose provides exceptional durability, crush resistance, and long service life. It is ideal for agriculture, construction, mining, industrial liquid transfer, and heavy-duty water handling applications.
Technical Specifications
Orange Heavy Duty Suction Hose
| SIZE | BENDING RADIUS (MM) | PRESSURE WORKING (KG/CM) | (AT 30C) BURSTING | STANDARD LENGTHS (METER) | |
|---|---|---|---|---|---|
| ID (MM) | INCH | ||||
| 20 | 3-4 | 30 | 12 | 36 | 30 / 50 |
| 25 | 1 | 42 | 12 | 36 | 30 / 50 |
| 32 | 1-1/4 | 59 | 12 | 36 | 30 / 50 |
| 40 | 1-1/2 | 61 | 12 | 36 | 30 / 50 |
| 50 | 2 | 92 | 10 | 30 | 30 / 50 |
| 65 | 2-1/2 | 110 | 10 | 30 | 30 / 50 |
| 75 | 3 | 142 | 9 | 30 | 30 / 50 |
| 100 | 4 | 196 | 9 | 27 | 30 / 50 |
| 127 | 5 | 220 | 9 | 27 | 30 / 50 |
| 150 | 6 | 375 | 8 | 24 | 6/12/15/30 |
| 200 | 8 | 600 | 8 | 24 | 6/12/15/30 |
| 254 | 10 | 800 | 6 | 18 | 4.5 / 6 / 9 / 12 / 15 |
Subject to variations in technical specifications according to internal factory tolerances.
Key Features & Benefits
Excellent flexibility
Durable construction
Weather and abrasion resistant
Smooth flow performance
Long operational life
Industrial and agricultural applications
Recommended Applications
Agriculture irrigation
Industrial water transfer
Construction applications
General fluid handling
Water suction and discharge
Ordering Info
Important Notice
- Please ask for minimum quantity and pricing.
- Custom size/length requests are subject to agreement.
- Available also in other colors.
[* = +-0.5, ** = +-1.0, *** = +-1.5] Recommended Maximum working temperature 55/60 °C
Note: Please ask the company for minimum quantity requirements and pricing. Special size or coil length request to be satisfied upon agreement with Tirupati Polyflex.
