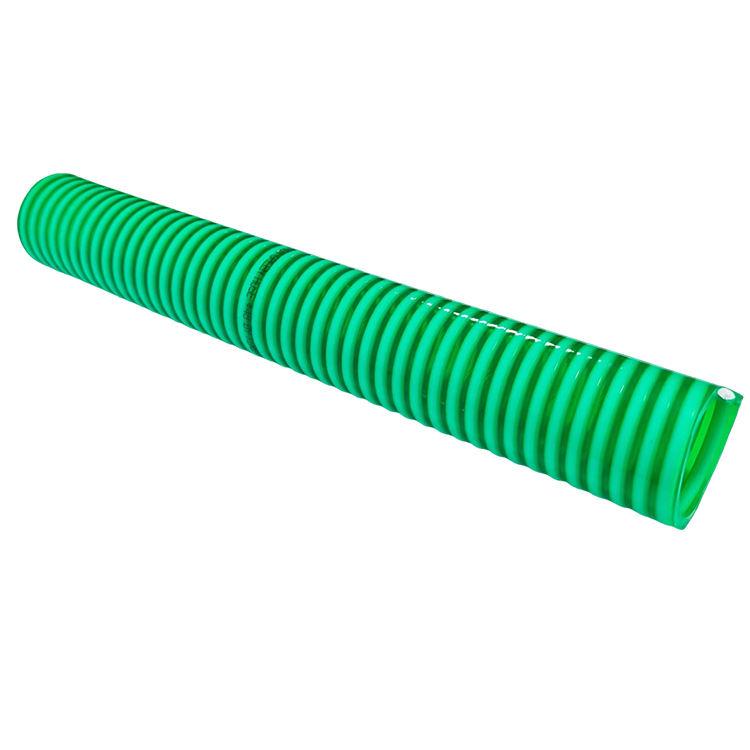

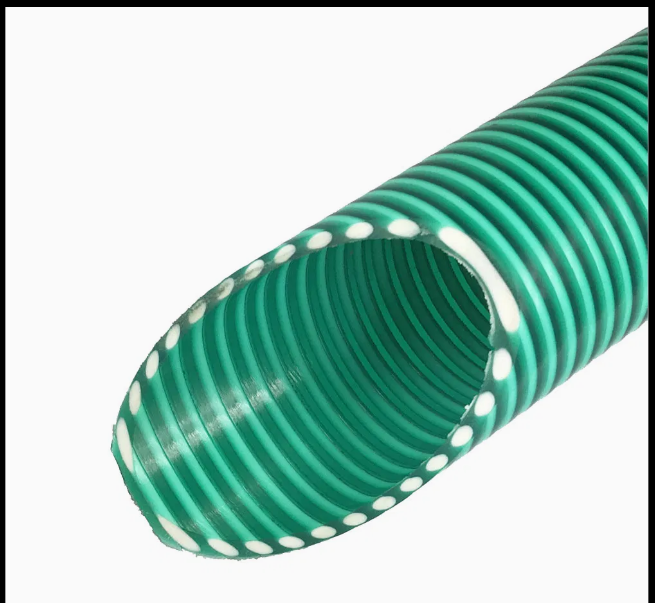

AMOLON LITEFLOW™ – Light Duty Suction Hose
Tirupati Polyflex Light Duty PVC Suction Hose is a flexible, lightweight, and durable hose designed for low-pressure suction and delivery applications. Manufactured using high-quality virgin PVC with rigid PVC spiral reinforcement, it ensures smooth water flow, excellent flexibility, and long service life. It is an economical solution for agriculture, construction, and general water handling purposes.
Technical Specifications
Light Duty Suction Hose
| SIZE | BENDING RADIUS (MM) | PRESSURE WORKING (KG/CM) | (AT 30C) BURSTING | STANDARD LENGTHS (METER) | |
|---|---|---|---|---|---|
| ID (MM) | INCH | ||||
| 20 | 3-4 | 45 | 11 | 33 | 25 / 30 / 50 |
| 25 | 1 | 55 | 11 | 33 | 25 / 30 / 50 |
| 32 | 1-1/4 | 75 | 11 | 33 | 25 / 30 / 50 |
| 40 | 1-1/2 | 95 | 10 | 30 | 25 / 30 / 50 |
| 45 | 1-3/4 | 133.35 | 10 | 30 | 25 / 30 / 50 |
| 50 | 2 | 122 | 9 | 27 | 25 / 30 / 50 |
| 65 | 2-1/2 | 160 | 9 | 27 | 25 / 30 / 50 |
| 75 | 3 | 272 | 8 | 24 | 25 / 30 / 50 |
| 89 | 1-1/2 | 266.7 | 8 | 24 | 25 / 30 / 50 |
| 100 | 4 | 290 | 8 | 24 | 25 / 30 / 50 |
| 115 | 4-1/2 | 342 | 8 | 24 | 30 / 50 |
| 127 | 5 | 320 | 6 | 18 | 15 / 30 |
| 150 | 6 | 350 | 6 | 18 | 6 / 12 / 15 / 30 |
| 200 | 8 | 600 | 6 | 18 | 6 / 12 / 15 / 20 |
| 254 | 10 | 1016 | 4 | 10 | 3 / 6 / 9 / 12 / 15 |
*Subject to variations in technical specifications according to internal factory tolerances.
Key Features & Benefits
Excellent flexibility
Durable construction
Weather and abrasion resistant
Smooth flow performance
Long operational life
Industrial and agricultural applications
Recommended Applications
Agriculture irrigation
Industrial water transfer
Construction applications
General fluid handling
Water suction and discharge
Ordering Info
Important Notice
- Please ask for minimum quantity and pricing.
- Custom size/length requests are subject to agreement.
- Available also in other colors.
* = ±0.5mm, ** = ±1.0mm, *** = ±1.5mm
Note: Please ask the company for minimum quantity requirements and pricing. Special size or coil length request to be satisfied upon agreement.
