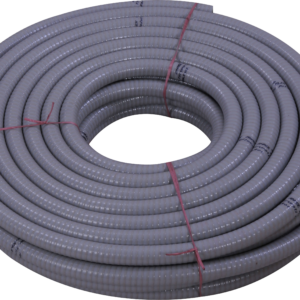

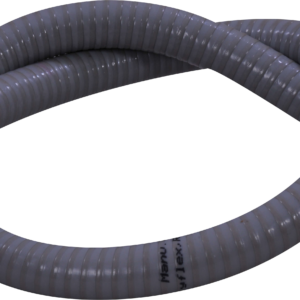

Structure
- Rigid PVC White Spiral
- Smooth Inside – Gray
- PVC Wall
Description
Specification:
| PVC SUCTION HEAVY DUTY | ||||||
|---|---|---|---|---|---|---|
| SIZE IN INCH | SIZE IN MM | WALL THICKNESS MM | WORKING PRESSURE KGS/CM2 | BURSTING PRESSURE KGS/CM2 | LENGTH METERS | REGULAR STANDARD WEIGHT |
| 3/4″* | 20 | 4.00 | 13.50 | 20.00 | 30.000 | 6.500 |
| 1″* | 25 | 4.50 | 10.50 | 18.00 | 30.000 | 8.500 |
| 1-1/4″** | 32 | 4.50 | 9.50 | 17.00 | 30.000 | 10.500 |
| 1-1/2″** | 40 | 5.00 | 9.00 | 15.00 | 30.000 | 14.500 |
| 1-3/4″** | 45 | 5.00 | 8.50 | 15.00 | 30.000 | 18.000 |
| 2″** | 50 | 5.50 | 8.00 | 14.50 | 30.000 | 22.000 |
| 2-1/4″** | 60 | 5.50 | 7.00 | 14.50 | 30.000 | 27.000 |
| 2-1/2″** | 65 | 6.00 | 7.00 | 13.00 | 30.000 | 32.000 |
| 3″*** | 75 | 6.50 | 6.00 | 13.00 | 30.000 | 40 TO 42 |
| 3-1/2″*** | 90 | 7.00 | 6.00 | 12.00 | 30.000 | 52.000 |
| 4″*** | 100 | 7.50 | 4.50 | 10.00 | 30.000 | 72.000 |
| 4-1/2″*** | 110 | 7.50 | 4.50 | 10.00 | 30.000 | 84.000 |
Application
- Heavy Duty Suction & Delivery Hose is ideal use for coal & Mining Industry
- Cement Chemicals and Petrochemicals
- Oil Exploration and Construction
Variation in ID/OD
- [*=+-0.5, **=+-1.0***=+-1.5]
- Recommanded Maximum working temperature 55/60 C0
Other Colors
- Available also in other colors.
- Please ask the company for minimum quantity requirements and pricing
- Special size or coil length request to be satisfied upon agreement with Tirupati Polyflex.
- All Technical data available are subject to modification without prior notice.
