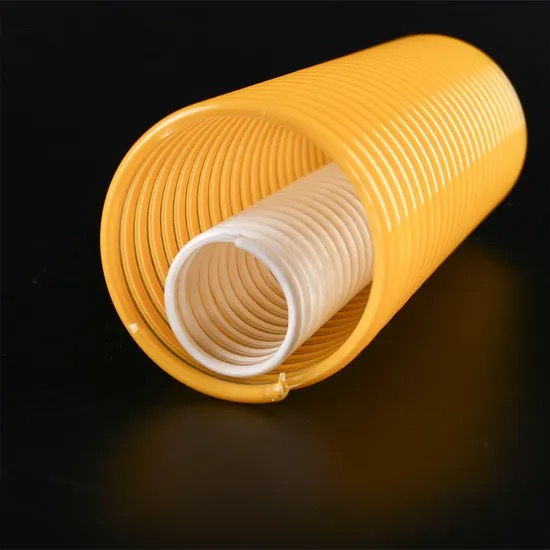

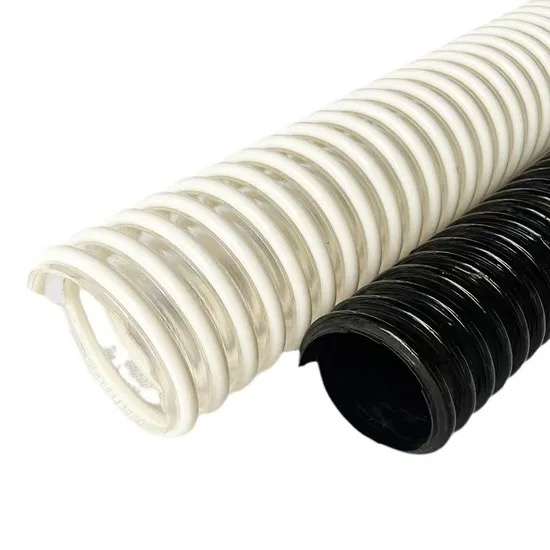

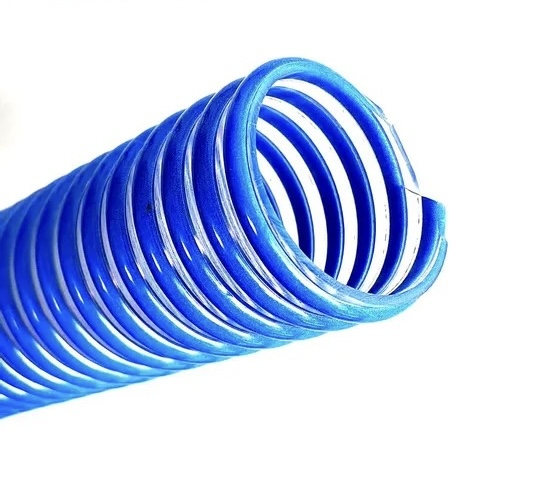

AMOLON CORRUFLEX™ – Corrugated Suction Hose
AMOLON Corrugated PVC Suction Hose is a lightweight and highly flexible hose specially designed for suction and delivery applications where easy bending and handling are required. Manufactured from premium-grade flexible PVC with a corrugated outer surface and reinforced spiral structure, this hose offers excellent flexibility, durability, and smooth water flow. The corrugated design improves bend radius, making it ideal for agricultural and irrigation pump connections. It is widely used in agriculture, water transfer, and light industrial applications.
Technical Specifications
Corrugated Suction Hose
| SIZE | BENDING RADIUS (MM) | PRESSURE WORKING (KG/CM) | (AT 30C) BURSTING | STANDARD LENGTHS (METER) | |
|---|---|---|---|---|---|
| ID (MM) | INCH | ||||
| 20 | 3-4 | 45 | 9 | 18 | 30 / 50 |
| 25 | 2 | 55 | 6 | 18 | 30 / 50 |
| 32 | 1-1/4 | 75 | 6 | 18 | 30 / 50 |
| 40 | 1-1/2 | 95 | 6 | 18 | 30 / 50 |
| 50 | 2 | 122 | 5 | 15 | 30 / 50 |
| 65 | 2-1/2 | 160 | 5 | 15 | 30 / 50 |
| 75 | 3 | 272 | 5 | 15 | 30 / 50 |
| 100 | 4 | 290 | 4 | 12 | 30 / 50 |
| 127 | 5 | 220 | 4 | 12 | 15 / 30 |
| 150 | 6 | 375 | 4 | 12 | 15 / 30 |
| 200 | 8 | 600 | 4 | 12 | 10 / 12 |
| 254 | 10 | 800 | 4 | 12 | 10 / 12 |
Subject to variations in technical specifications according to internal factory tolerances.
Key Features & Benefits
Excellent flexibility
Durable construction
Weather and abrasion resistant
Smooth flow performance
Long operational life
Industrial and agricultural applications
Recommended Applications
Agriculture irrigation
Industrial water transfer
Construction applications
General fluid handling
Water suction and discharge
Ordering Info
Important Notice
- Please ask for minimum quantity and pricing.
- Custom size/length requests are subject to agreement.
- Available also in other colors.
